Soil Nailing & Rock Anchoring for excavations and slopes
Soil nailing reinforces excavated faces and slopes with closely spaced steel bars grouted into the ground, built from the top down with a facing, often shotcrete. Rock and ground anchors are tensioned tendons grouted into competent ground that actively restrain retaining walls, rock faces and structures.
Suitable ground conditions and applications
Can be considered where…
- Temporary or permanent excavation support.
- Slope stabilisation.
- Rock slope and rock face stabilisation.
- Tie-back anchors for pile walls; resistance to uplift.
Limitations
- Soil nailing needs ground that stands unsupported for a short time at each lift.
- Below the water table, dewatering is usually needed.
- Anchors may extend beyond the site boundary and need permission.
- Permanent works need designed corrosion protection.
Suitability is confirmed from the site investigation and the performance requirement.
How it works

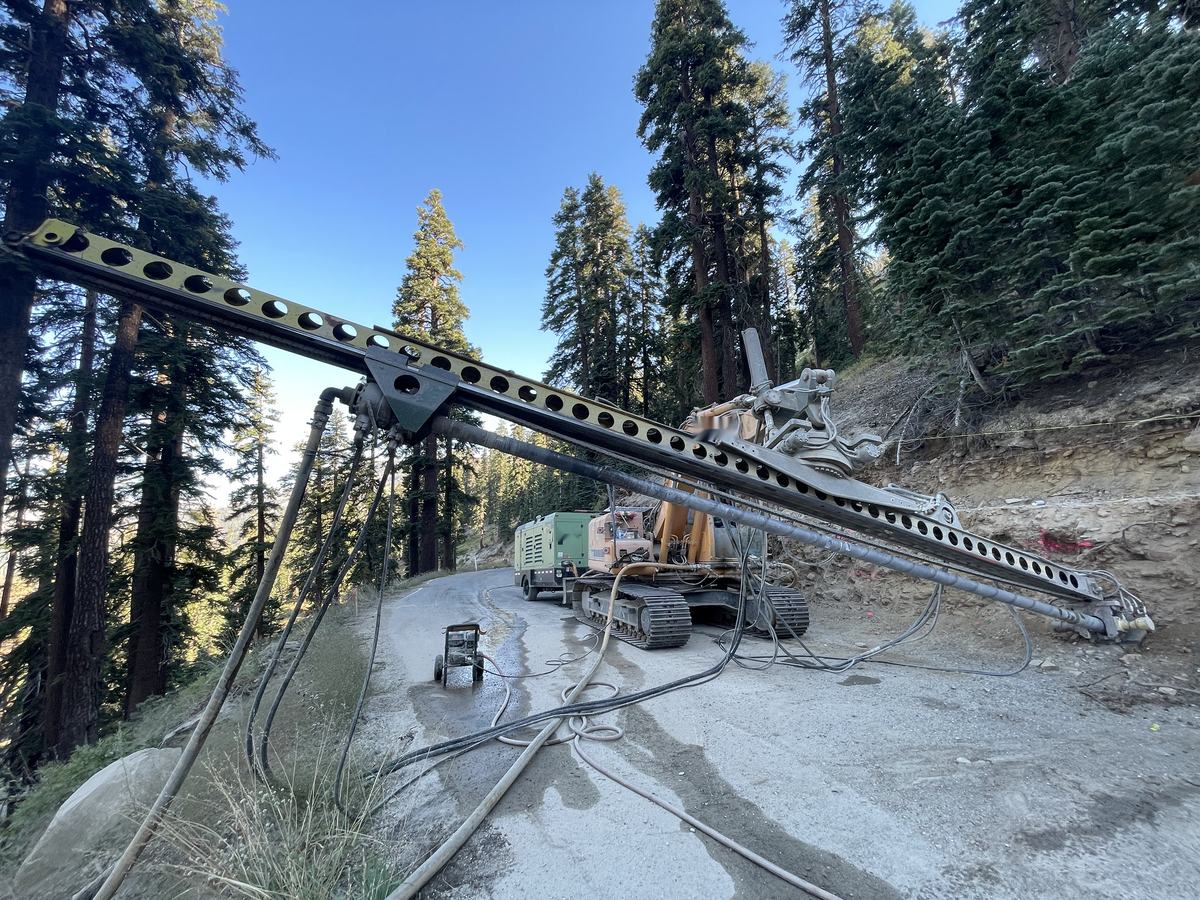

For soil nailing, the face is excavated in short lifts. Holes are drilled, steel bars installed and grouted, and the face is covered with reinforced shotcrete before the next lift.
For anchors, a tendon is installed and grouted into competent ground. Once the grout has gained strength, the anchor is tensioned and locked off against the wall or face.
Design inputs
- Site investigation and groundwater.
- Excavation or slope geometry and surcharges.
- Nail or anchor spacing, length, inclination and bond.
- Corrosion protection and design life.
- Facing design and drainage behind the facing.
Trial and calibration
- Sacrificial pull-out tests on nails or anchors to confirm the bond.
- Lift height and face stability confirmed on site.
Execution controls
- Excavation lift heights.
- Drilling records.
- Bar or tendon installation with centralisers.
- Grout mix and volume.
- Anchor stressing records.
Verification and acceptance
Design intent, production control and acceptance verification are kept separate, so it is always clear what was required, what was done and what was proven.
What is required
Stability and movement criteria agreed with the consultant.
What was done
Installation and grouting records for every nail or anchor.
What was proven
Sacrificial pull-out tests and proof tests on nails; suitability and acceptance tests on anchors; movement monitoring.
Deliverables
- Method statement and risk assessment
- Layout and section drawings
- Installation records
- Stressing and test records
- Monitoring reports
Common questions
What is the difference between a soil nail and a ground anchor?
A soil nail is passive: it takes load as the ground starts to move. An anchor is tensioned after installation, so it applies a restraining force from the start.
What ground is suitable for soil nailing?
Ground that can stand unsupported for a short time at each excavation lift. Below the water table, dewatering is usually needed.
Is soil nailing temporary or permanent?
It can be either. Permanent works need corrosion protection designed for the service life.
